Metal Pre Galvanized Construction Scaffolding Plank/Stair
/Coupler/Board Ringlock Scaffold
a. Easily set up and easy disassembly, so it's labour saving
b. Stable and reliable, safe and efficent
c. Structure simple, Very little material required
d. Maintenance-free, easy to transport and always ready for use
e. Economic and versatile design
f. Strong commonality
| Technology process | robot Automatic welding and hot dipped galvanized |
| Standard/Vertical post | Q345B ∅60*3.2mm length:0.5/1.0/1.5/2.0/3.0m |
Ledger/Transom (Horizontal ledger) (Cross Brace | Q235B ∅48*3.2mm length:1.0/1.3/1.5/2.0/2.3/2.5/3.0m |
| Diagonal | Q195 ∅42*2.5mm |
| Circle Disc | Q345B ∅133*10mm ,with 8 holes in it |
| Other parts | Jackplatescastingsteel pankscoupler |
| Carrying capacity | 10-20ton |
| Service life | more than 25 years |
| Packing&deliver | packed with steel pallets in bundle;15-25 days after deposit |
| Payment Terms | T/T 30%Depoist,L/C,DP,WU,CASH,etc. |
| MOQ | 25tons |
| Application | building construction , road , civil , ocean engineering , bridge ,
etc |
| Standards | Length(mm) | Tube Thickness(mm) | Tube Diameter(mm) | Surface Treatment |
| 3000 | 3/3.25 | 48 | Powder Coated/HDG/Painted |
| 2500 | 3/3.25 | 48 | Powder Coated/HDG/Painted |
| 2000 | 3/3.25 | 48 | Powder Coated/HDG/Painted |
| 1000 | 3/3.25 | 48 | Powder Coated/HDG/Painted |
|
| Ledgers | Length(mm) | Tube Thickness(mm) | Tube Diameter(mm) | Surface Treatment |
| 1950 | 3/3.25 | 48 | Powder Coated/HDG/Painted |
| 1780 | 3/3.25 | 48 | Powder Coated/HDG/Painted |
| 1150 | 3/3.25 | 48 | Powder Coated/HDG/Painted |
|
| Diagonal Braces | Length(mm) | Tube Thickness(mm) | Tube Diameter(mm) | Surface Treatment |
| 2411 | 3 | 42/48mm | Powder Coated/HDG/Painted |
| 2244 | 3 | 42/48mm | Powder Coated/HDG/Painted |
|

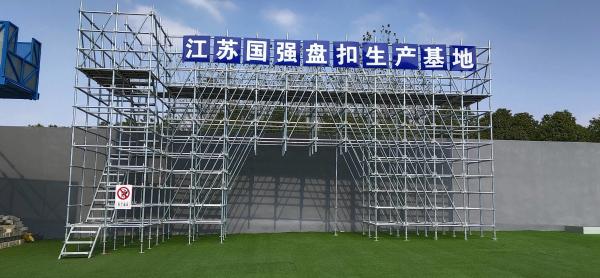

Construction Steel Glavanized Ringlock scaffolding is the industry
standard for modular scaffolding, offering outstanding durability,
simplicity and versatility. Ringlock is the scaffolding of choice
worldwide for homes, industrial facilities and construction sites.
The ring lock system saves a lot of assembly and disassembly time
and minimizes field costs. Its modular construction minimizes
storage space when not in use.
Engineered for versatility, durability and strength, Steel Ringlock
Scaffolding is a universal application system with professional
performance. Ideal for use on structures with complicated shapes,
plans and elevations, it’s the perfect choice when angular
flexibility is important.
Designed using the latest technology, the Steel Layer Scaffold
offers a whole range of safety features giving you peace of mind
while you are hard at work.
Ringlock scaffold, also called Modular Scaffolding and
Multi-directional Scaffolding, the junction enables quick and easy
connection of load bearing items as well as reinforcing parts to
each other with an enormous rigidity.
Company information
JiangSu Guoqiang Zinc Plating Industrial Co.,Ltd. Our company was
established in 1998.ranked among top 500 private companies of china
.its totally 800.000sqm area with more than 3000 empolyees .total
output will exceed two million tons in 2017.its the biggest
manufacture of highway guardrail and solar panel braket in china
.the biggest manufacture of ERW tubes .hot dip galvanized tubes in
east Pat of china as well as hot dip galvanizing processing
.jiangsu guoqiang has more than 10 Lines of cold forming processing
.producing various kind of cold formed profile .it has 22 lines of
hot dip galvanzing .other products include spiral welder pipe
.electricity Tower .highspeed rail noise barrier etc.products
already sold to around the world for more than 10 years .jiangsu
guoqiang has won good reputation with its good quality product but
fair price .
